SENSOR(HST) (KU-TD17052302)

Title

SENSOR(HST) (KU-TD17052302)

DESCRIPTION

TD170-52302 HST Sensor

MODEL FITMENT

L-Series (HST & Cab Models)

• L1 Series: L1-452HST, L1-552HST

• L Series:

  • L1421HST, L1501HST

  • L2351HSTC, L2421HSTC, L2501HSTC, L2602HSTC

  • L3540HSTC-2

  • L4240HST-C / HSTC-2

  • L5240HST / HST-C / HSTC-2

  • L5740HST-C / HSTC-2

• L2 Series Cab Models:

  • L2-452HSTC, L2-552HSTC, L2-622HSTC

---

M4 Series

• M4-063 / M4-073

• DTH & DTHC variants

• 18-speed and 36-speed configurations

• Front and rear switch/sensor locations

---

M4000 / M4060 / M4070 Series

• M4062 / M4063 / M4072 / M4073

• DTH & DTHC variants

• Standard, dual-speed, and 36-speed transmissions

• With and without trailer brake configurations

---

M5 Series

• M5-082 / M5-092 / M5-102 / M5-112

• N, H, NC, HC variants

• EC / NEC / UK / ITA / PC specifications

• F-SUS (front suspension) models

• Brake, bonnet, pedal, front, and rear switch/sensor locations

---

M5000 Compact Utility Series

• M5071 / M5091 / M5092 / M5101 / M5111 / M5112

• H, NC, HC variants

• Regional EC / NEC / UK / ITA specifications

• Old and new switch/sensor revisions supported

---

M6 Series

• M6-122 / M6-132 / M6-142

• Used within armrest component assemblies

• Additional applications on M6060 / M7060 (fuel unit / horn)

• Rear sensor applications on M8560 / M9960 (UK variants)

PART DESCRIPTION

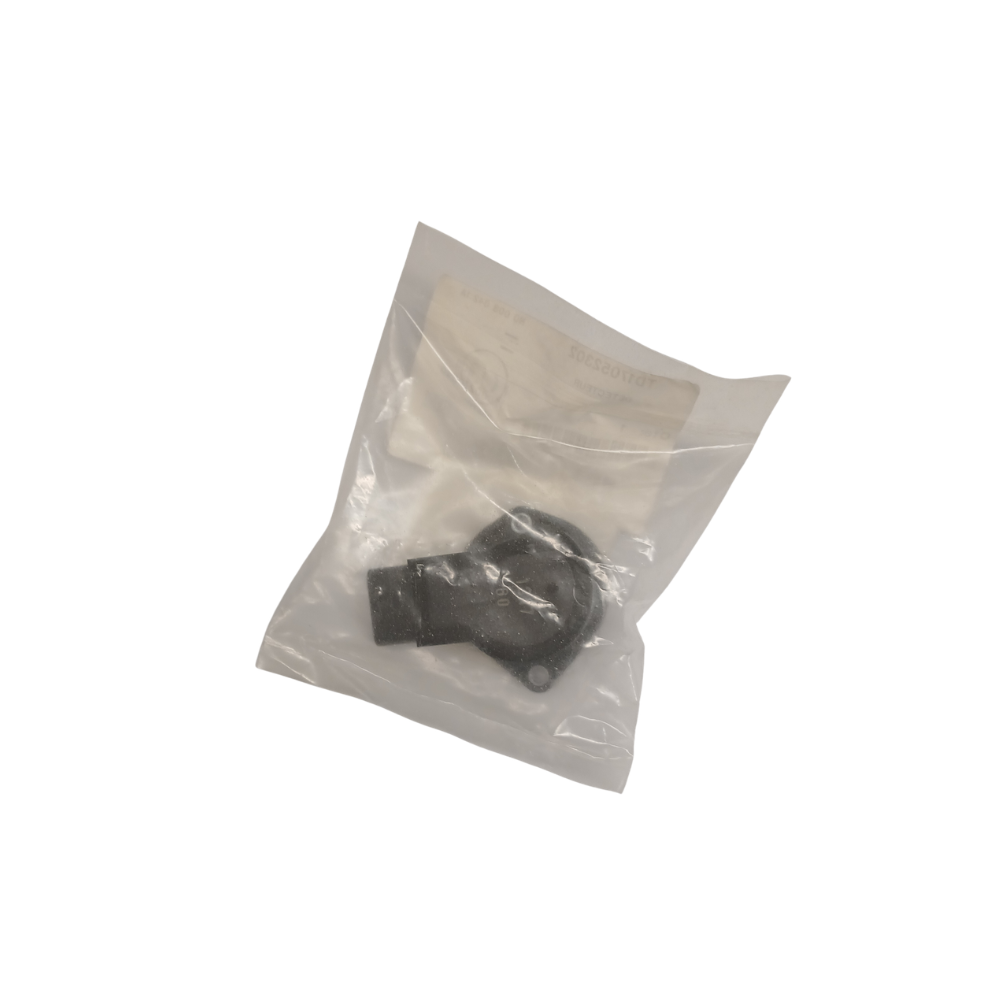

The TD170-52302 HST Sensor is a genuine Kubota OEM sensor used primarily on hydrostatic transmission (HST) systems. Depending on the tractor model and configuration, this sensor functions as a hydrostatic transmission sensor or switch/sensor, monitoring transmission or operational status for safety, control, and system feedback
