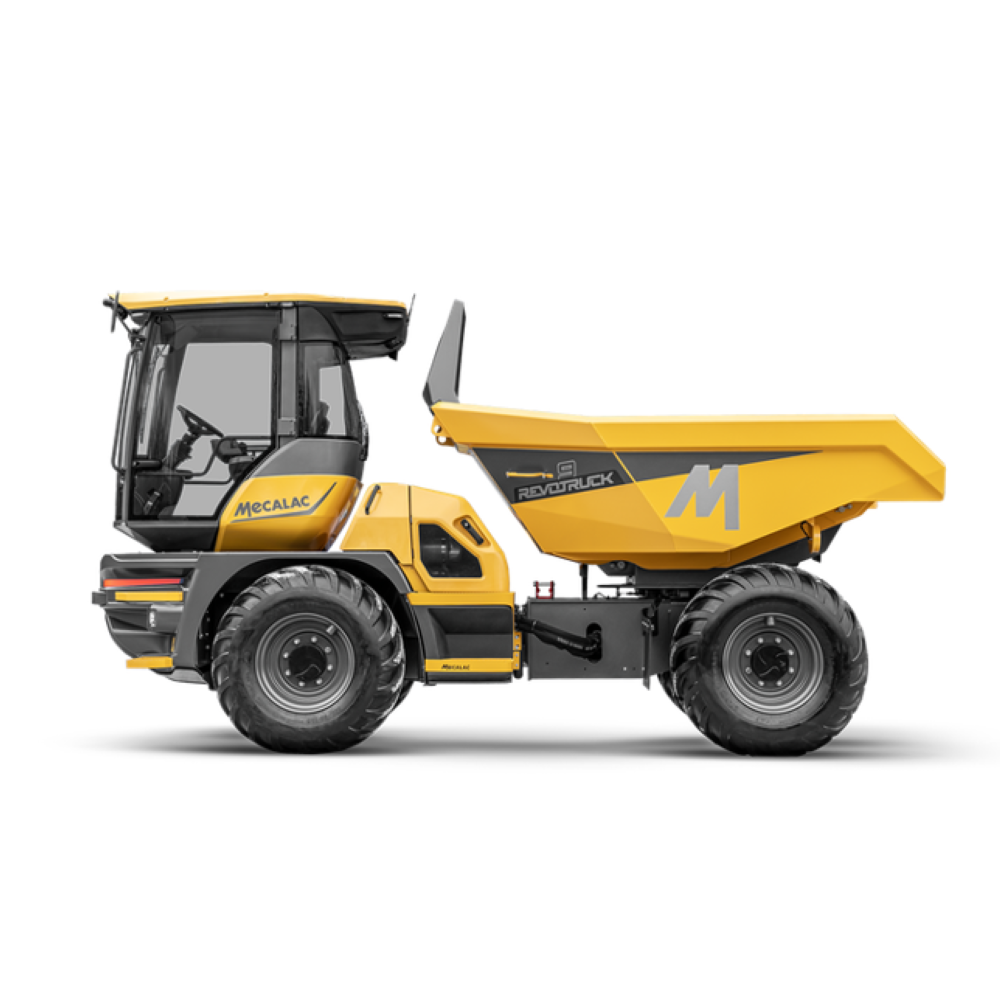

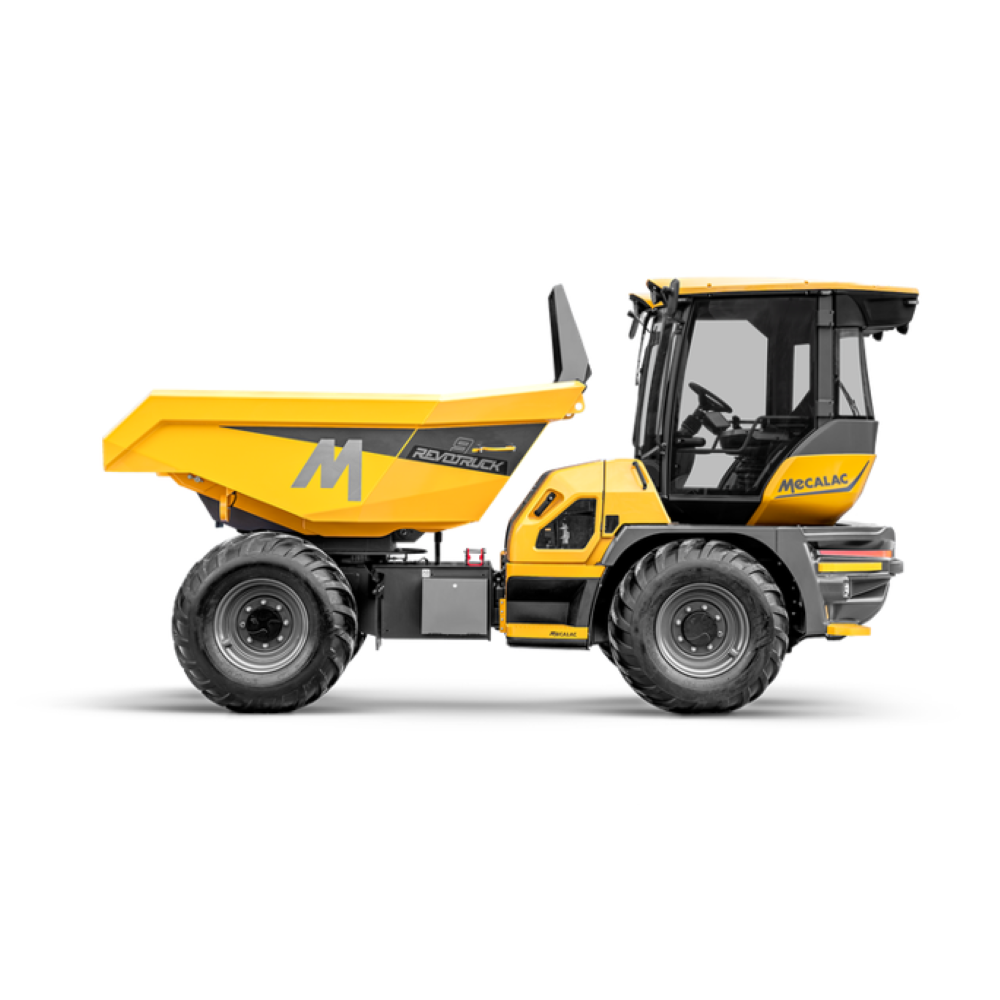

MECALAC Revotruck9 Dumper – Overview
Outstanding Visibility, Maximum Safety and High-Capacity Material Transport
The MECALAC Revotruck9 Dumper is engineered to redefine safe and efficient material transport on modern worksites. Designed around Mecalac’s ground-breaking REVOLUTION concept, the Revotruck9 combines exceptional stability, all-terrain capability and unmatched visibility with a highly productive 9-tonne payload. Purpose-built for construction, infrastructure, utilities and heavy material-handling environments, it delivers a new benchmark in operator safety, control and daily efficiency.
At the heart of the Revotruck9 is its fully rotating operator platform. This 270° cab rotation allows the operator to always face the direction of travel, ensuring optimal visibility without the need for reversing. This innovative approach significantly improves situational awareness, minimises blind spots and enhances safety on busy or confined worksites. The rotating seat is paired with intuitive, direction-sensitive controls, ensuring that steering and machine movements always remain logical and aligned with the operator’s viewpoint.
The machine’s robust chassis and low centre of gravity provide exceptional stability, even when transporting heavy loads across uneven ground. Permanent four-wheel drive, oscillating axles and a powerful drivetrain ensure reliable traction, enabling the Revotruck9 to perform confidently in challenging conditions such as soft ground, gradients and rough terrain. With its high-capacity skip, the dumper offers efficient loading cycles and reduced turnaround times, supporting greater productivity across demanding transport tasks.
Operator comfort and ergonomics are central to the Revotruck9’s design. The enclosed cab provides excellent protection from noise, dust and weather while offering superb visibility. Modern controls, adjustable seating and a well-organised interface support long, productive shifts with reduced fatigue. The machine’s design also simplifies maintenance, with accessible service points that reduce downtime and support long-term reliability.
Combining superior visibility, enhanced safety and high-performance material-moving capability, the MECALAC Revotruck9 Dumper is an intelligent, future-ready solution for operators seeking maximum productivity and control in demanding site conditions.
Key Features
- Unmatched visibility – 270° rotating cab keeping the operator facing the direction of travel
- Enhanced onsite safety – reduced blind spots and no reversing needed
- Strong all-terrain traction – permanent four-wheel drive with oscillating axles
- High payload efficiency – 9-tonne capacity for fast, productive working cycles
- Exceptional stability – low centre of gravity for secure handling on uneven ground
- Intuitive operator controls – direction-sensitive steering and machine functions
- Durable construction – robust chassis designed for demanding site conditions
- Comfortable operator environment – enclosed cab with ergonomic layout
- Efficient loading capability – large skip with smooth, controlled dumping
- Easy maintenance access – simplified service points for reduced downtime
Specifications
| Model |
MECALAC Revotruck9 Dumper |
| Total Operating Weight |
6565 kg (14,473 lbs) |
| Engine Power |
55 kW (74 hp) |
| Skip Type |
Swivel |
| Payload |
9000 kg (19,842 lbs) |
| Maximum Skip Capacity (Heaped) |
4,5 m3 (5.9 yd3) |
| Transmission |
Hydrostatic |
| Travel Speed |
25 km/h (15.5 mph) |
