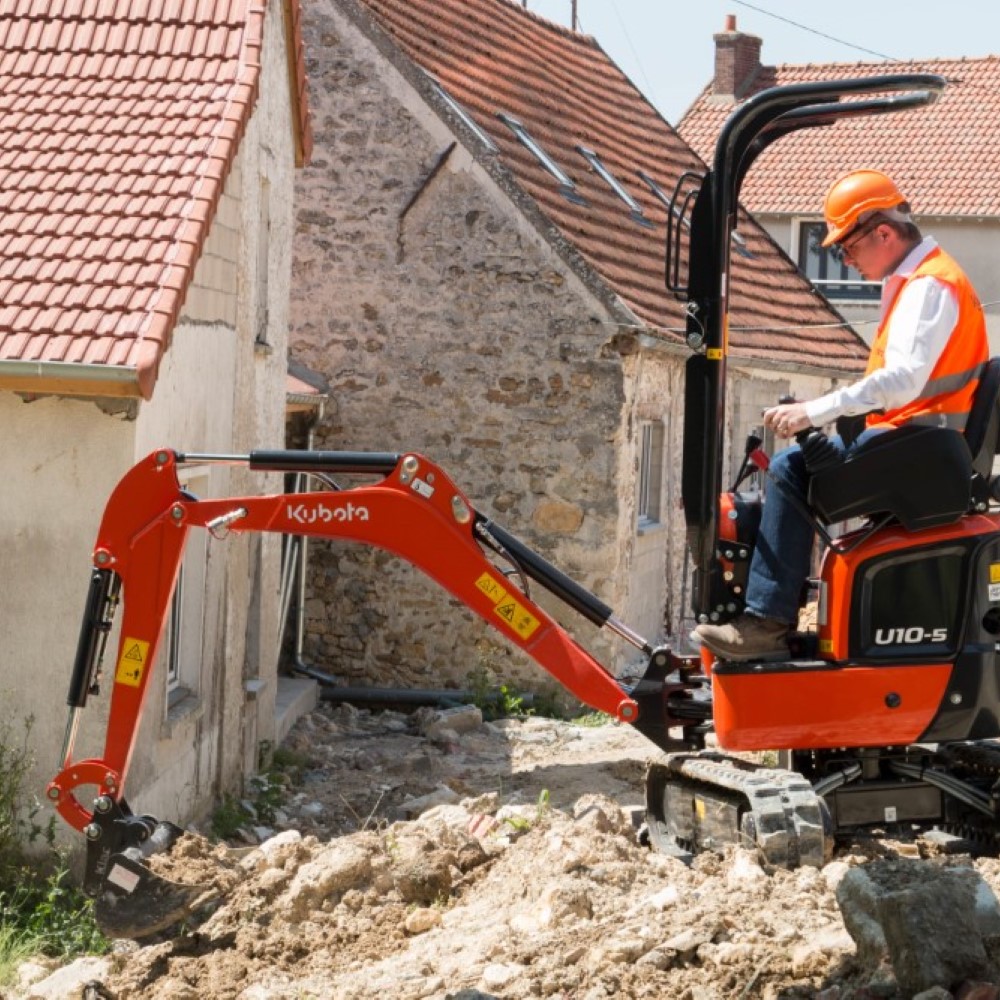

Kubota U10-5 Mini Excavator – Overview
Compact Power, Precision, and Performance for Tight Spaces
The Kubota U10-5 Mini Excavator is the ultimate compact digging machine for professionals who need power, precision, and reliability in confined spaces. Designed for construction, landscaping, utilities, and groundworks, this 1.2-tonne zero-tail swing excavator offers outstanding versatility, smooth control, and class-leading safety — all in an ultra-compact frame.
Powered by a Kubota D722-E4-BH-4EU Stage V diesel engine, the U10-5 delivers 10.3 PS (7.6 kW) of strong, fuel-efficient performance with low noise and reduced emissions. This proven, liquid-cooled engine provides consistent torque and smooth operation, making it ideal for both light-duty and professional site work.
With a maximum digging depth of 1,800 mm, a dumping height of 2,180 mm, and a lifting capacity of up to 250 kg at ground level (over front, blade down), the U10-5 delivers exceptional digging and lifting capability for its compact size. The hydraulic control system allows precise, responsive operation, while the zero-tail swing design ensures safe, confident performance in narrow or enclosed work areas.
The variable track width, adjustable from 750 mm to 990 mm, provides access through tight entrances and improved stability when fully extended. A foldable ROPS frame and compact profile make transportation simple and efficient, while the smooth two-speed travel system enhances manoeuvrability on any job site.
Designed for operator comfort and ease of use, the U10-5 features ergonomically positioned controls, a comfortable seating area, and excellent all-round visibility. Enhanced safety systems — including a travel lock lever, LED work light, and highly visible orange seatbelt — provide added confidence during operation.
Built to Kubota’s industry-leading standards, the U10-5 combines strength, stability, and reliability for professionals who demand consistent performance from a mini excavator that fits anywhere.
Key Features
- Kubota D722 Stage V diesel engine – 10.3 PS (7.6 kW) for quiet, efficient, and low-emission performance
- Maximum digging depth: 1,800 mm | Dumping height: 2,180 mm
- Lifting capacity: up to 250 kg at ground level (over front, blade down)
- Zero-tail swing design – perfect for confined or urban spaces
- Variable track width: 750–990 mm for stability or narrow access
- Smooth hydraulic control system – precision operation and responsiveness
- Two-speed travel system for efficient movement and control
- Compact, foldable ROPS frame for easy transport and storage
- LED work light and safety lock systems for improved safety
- Kubota build quality – durable, reliable, and easy to maintain
Specifications
| Model |
U10
|
| Machine Weight (kg) |
1050
|
| Power ISO 14396 PS (kW) / rpm |
10.3 (7.6) / 2050
|
| Power ISO 9249 PS NET (kW) / rpm |
10.3 (7.5) / 2050
|
| Max Speed (km/h) |
2.0 / 4.0
|
| Max Dig Depth (mm) |
1800
|
| Max Reach (mm) |
3300
|
| Max Digging Force Arm/Bucket (kN) |
5.4 / 10.4
|
| Aux Flow 1 |
21 l/min @ 175 kgf/cm2
|
| Overall width (mm) |
750 to 990
|
| Transport height (mm) |
2980
|
