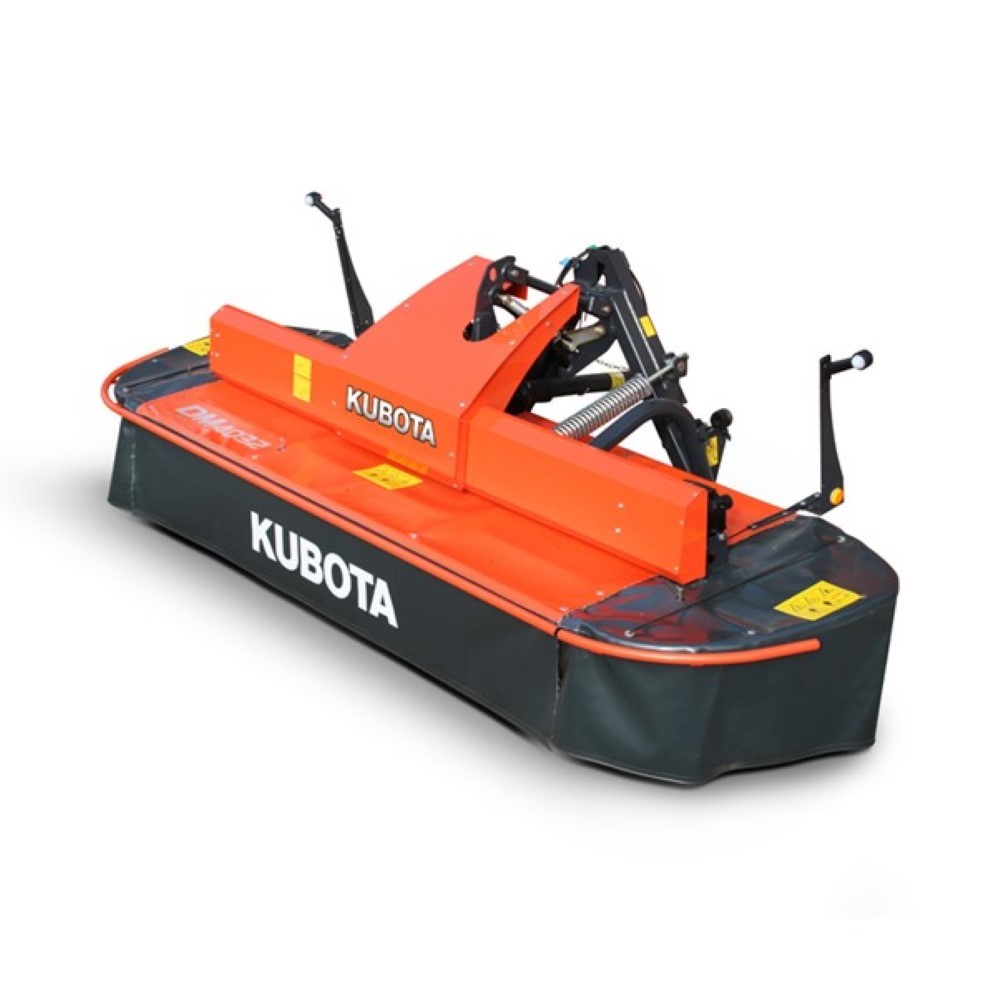

KUBOTA DM4000 MOWER (55000053)

Kubota DM4000 Mower – Overview

Maximum Productivity, Precision Cutting

The Kubota DM4000 Series Mower is engineered for professional farmers and contractors who demand maximum efficiency, durability, and cutting performance. Designed to deliver high-capacity output and exceptional reliability, the DM4000 handles the heaviest crops and widest working widths with ease, making it ideal for large-scale silage and hay operations.

At its core, the DM4000 is built around Kubota’s proven fully welded cutterbar, designed for long service life, minimal maintenance, and optimal crop flow. The triangular discs deliver a precise and consistent cut, improving crop quality and ensuring even swath formation. Its robust construction and low-profile design reduce power loss while improving efficiency and fuel economy.

The centre-suspended mower units ensure uniform ground pressure across the full working width, adapting perfectly to uneven terrain. Combined with hydraulic suspension adjustment, the mower maintains exceptional cutting accuracy, reduces soil contamination, and protects forage quality.

Kubota’s NonStop BreakAway system provides automatic cutterbar protection by allowing the mower to pivot backward on impact with an obstacle—keeping you working without interruption. When the obstacle is cleared, the mower automatically returns to its original position, saving both time and repair costs.

For ease of use and transport, the DM4000 features a 125° vertical transport position, minimising road width and ensuring safe, compact travel. The optional Vertical Parking Stand also makes storage simple and space-efficient when not in use.

Available in working widths of up to 9.5 metres, the DM4000 offers outstanding productivity while maintaining Kubota’s reputation for strength, precision, and operator-friendly design. Its 540/1000 rpm gearbox provides flexibility for different tractors, ensuring smooth operation and long-lasting performance in demanding environments.

Key Features

• Working widths from 8.7 to 9.5 metres for maximum field efficiency
• Fully welded Kubota cutterbar with triangular discs for precise, durable cutting
• Centre suspension for accurate ground contour following
• Hydraulic suspension adjustment for consistent performance on uneven terrain
• NonStop BreakAway protection to prevent cutterbar damage
• Vertical transport position for safe and compact road travel
• Vertical parking stand for easy, space-saving storage
• 540/1000 rpm gearbox for operational flexibility

Specifications

Models	Working Width	Weight	Power Req.
DM4028	2.80m	670kg	37/50 kW/hp
DM4032	3.20m	691kg	40/55 kW/hp
