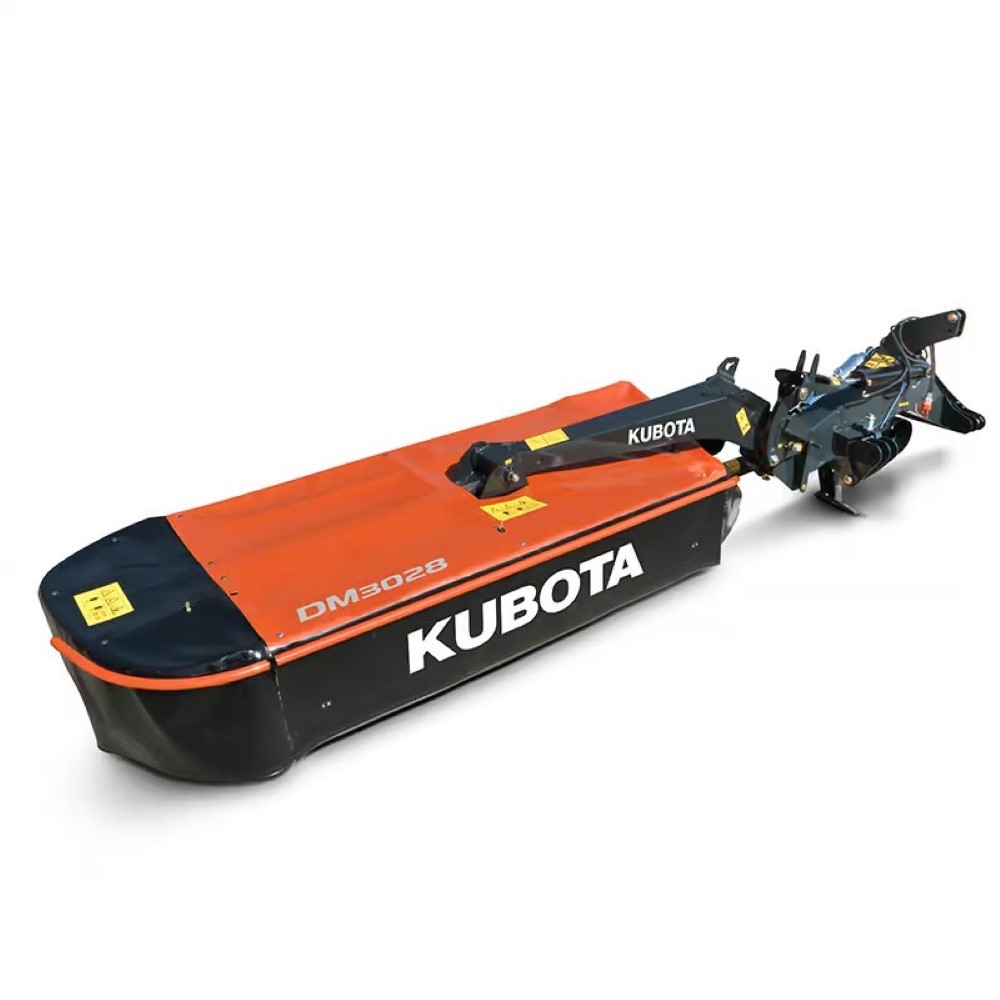

KUBOTA DM3000 MOWER (55000051)

Kubota DM3000 Mower – Overview

Precision, Power, and Productivity Combined

The Kubota DM3000 Series Disc Mowers deliver exceptional cutting performance and durability, designed for professional farmers and contractors who demand efficiency and reliability. Built on Kubota’s proven engineering expertise, the DM3000 Series offers wide working widths, high output, and advanced features that ensure superior cutting quality in all field conditions.

At the heart of the DM3000 is the renowned Kubota cutterbar, featuring a fully welded, low-profile design for consistent, high-speed cutting. This heavy-duty cutterbar ensures minimal wear, smooth operation, and long service life. The triangular discs are positioned for optimal overlap, reducing crop striping and ensuring a clean, even cut, even at higher forward speeds.

The DM3000 range offers working widths from 2.8 m to 3.5 m, combining strength with operational flexibility. The machine’s NonStop BreakAway system automatically protects the cutterbar from impact damage by allowing the mower to pivot backward and return smoothly to position once clear of an obstacle. This means uninterrupted productivity, even in uneven or stony terrain.

For consistent ground following, the mower’s suspension system uses an innovative spring or hydro-mechanical design (depending on model) that adjusts to field contours, maintaining optimal cutting pressure and reducing soil contamination. The headland lift feature allows for easy raising and repositioning without disengaging the PTO—saving time and improving efficiency.

When it comes to transport and storage, the DM3000 Series is designed for practicality. It folds vertically to a compact position, ensuring safe transport and easy handling on narrow roads. Maintenance is simple and fast, thanks to easy access service points and Kubota’s QuickSwap blade system, allowing blade changes in seconds.

Built for high performance, low maintenance, and long-term reliability, the Kubota DM3000 Mower is the ultimate choice for operators who value productivity and precision in every pass.

Key Features

• Fully welded Kubota cutterbar with triangular discs for exceptional durability and cut quality
• NonStop BreakAway system for cutterbar protection and continuous mowing
• Flexible suspension for superior ground contour following
• Easy hydraulic headland lift for fast turns
• Wide working widths from 2.8 m to 3.5 m for greater productivity
• Compact vertical transport position for safety and convenience
• QuickSwap blade system for efficient maintenance in the field

Specifications

Models	Working Width	Weight	Power Req. Min.
DM3028	2.80m	810kg	37/50 kW/hp
DM3032	3.20m	840kg	40/50 kW/hp
DM3036	3.60m	880kg	44/60 kW/hp
DM3040	4.00m	940kg	51/70 kW/hp
