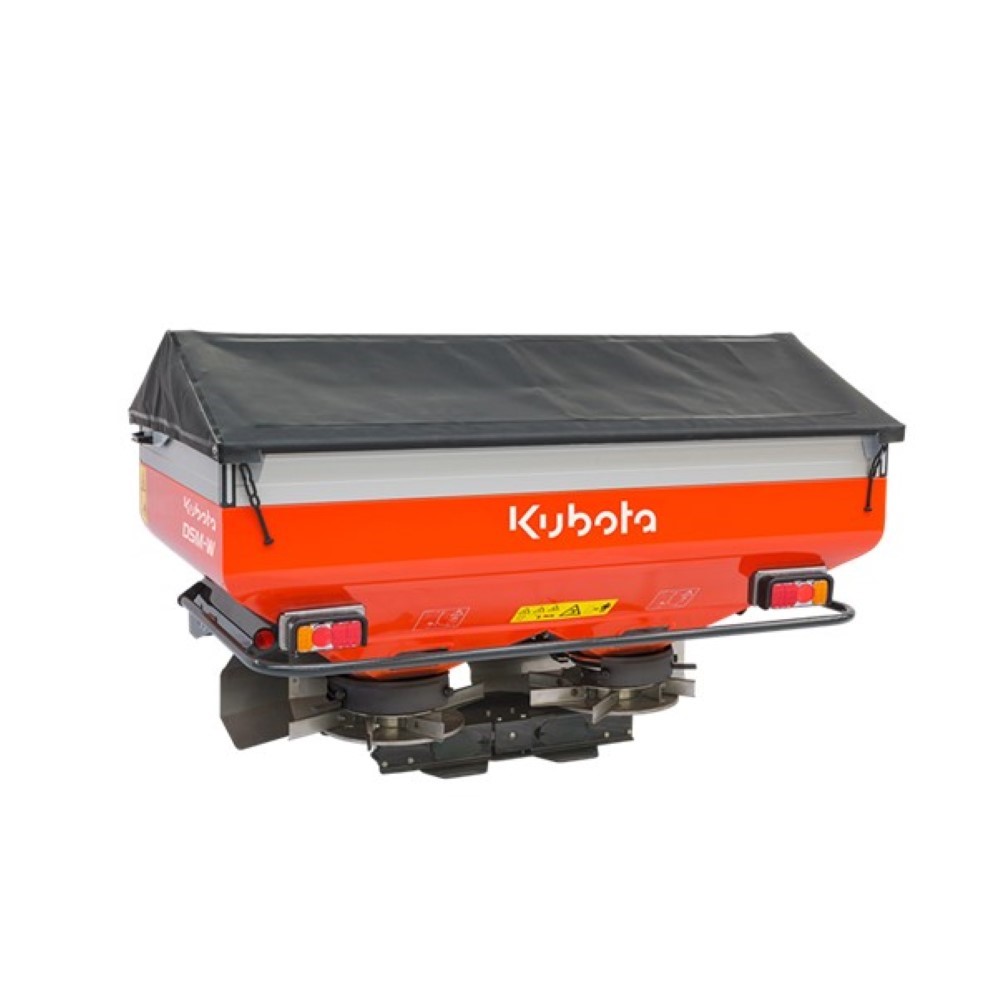

Kubota DSM-W Spreader – Overview
The Kubota DSM-W Spreader is a high-precision, ISOBUS-compatible weighing spreader designed to deliver exceptional accuracy, efficiency, and ease of use for professional growers and contractors. Combining Kubota’s proven RotaFlow spreading technology with a sophisticated on-board weighing system, the DSM-W ensures consistent application rates in all working conditions, helping to reduce fertiliser waste while improving crop yield and quality.
At the core of the DSM-W is its unique reference sensor, which continuously measures and adjusts the flow rate automatically. This ensures that fertiliser is applied precisely according to the desired rate, regardless of changes in terrain, fertiliser quality, or working speed. The integrated weighing system eliminates the need for manual calibration, allowing operators to work with confidence and accuracy from the very start.
The DSM-W features a base hopper capacity of 1,100 litres, which can be increased up to 2,000 litres using two easy-to-fit aluminium hopper extensions. This flexibility allows operators to adapt the machine to different job sizes, improving efficiency and reducing downtime. The spreader offers a working width range of 10 to 24 metres, extendable to 27 or 28 metres with an optional vane kit, making it suitable for a wide variety of field sizes and applications.
The FlowPilot dashboard on each spreading disc enables quick and easy setting adjustments, saving time during setup and operation. The DSM-W is fully ISOBUS 11783 compatible, allowing for seamless integration with modern tractor terminals, including Kubota IsoMatch Tellus PRO and Tellus GO. When combined with IsoMatch GEOCONTROL, the spreader supports section control and variable rate applications, bringing precision farming to the next level.
Whether used for fertiliser application on arable land, grassland, or specialist crops, the Kubota DSM-W Spreader provides a highly efficient and accurate spreading solution. It reduces input costs, improves crop performance, and ensures sustainable, precise nutrient application season after season.
Key Features
- Integrated weighing system with unique reference sensor for continuous, automatic rate control
- RotaFlow spreading system for uniform and accurate distribution
- Hopper capacity from 1,100 L, expandable up to 2,000 L
- Working width adjustable from 10–24 m, extendable to 27/28 m
- FlowPilot dashboard for quick and easy adjustment
- ISOBUS 11783 compatibility for seamless integration with tractor terminals
- Optional IsoMatch GEOCONTROL for section control and variable rate applications
Specifications
| DSM-W |
DSM-W1100 |
DSM-W1550 |
DSM-W2000 |
| Hopper capacity (kg) |
1100 |
1550 |
2000 |
| Filling height (cm) |
100 |
119 |
138 |
| Width (cm) |
220 |
220 |
220 |
| Filling width (cm) |
214 |
214 |
214 |
| Empty weight (kg) |
380 |
400 |
425 |
| Spread width (m) |
10-24 (27/28)* |
10-24 (27/28)* |
10-24 (27/28)* |
| Output (kg/min) |
10-320 |
10-320 |
10-3200 |
