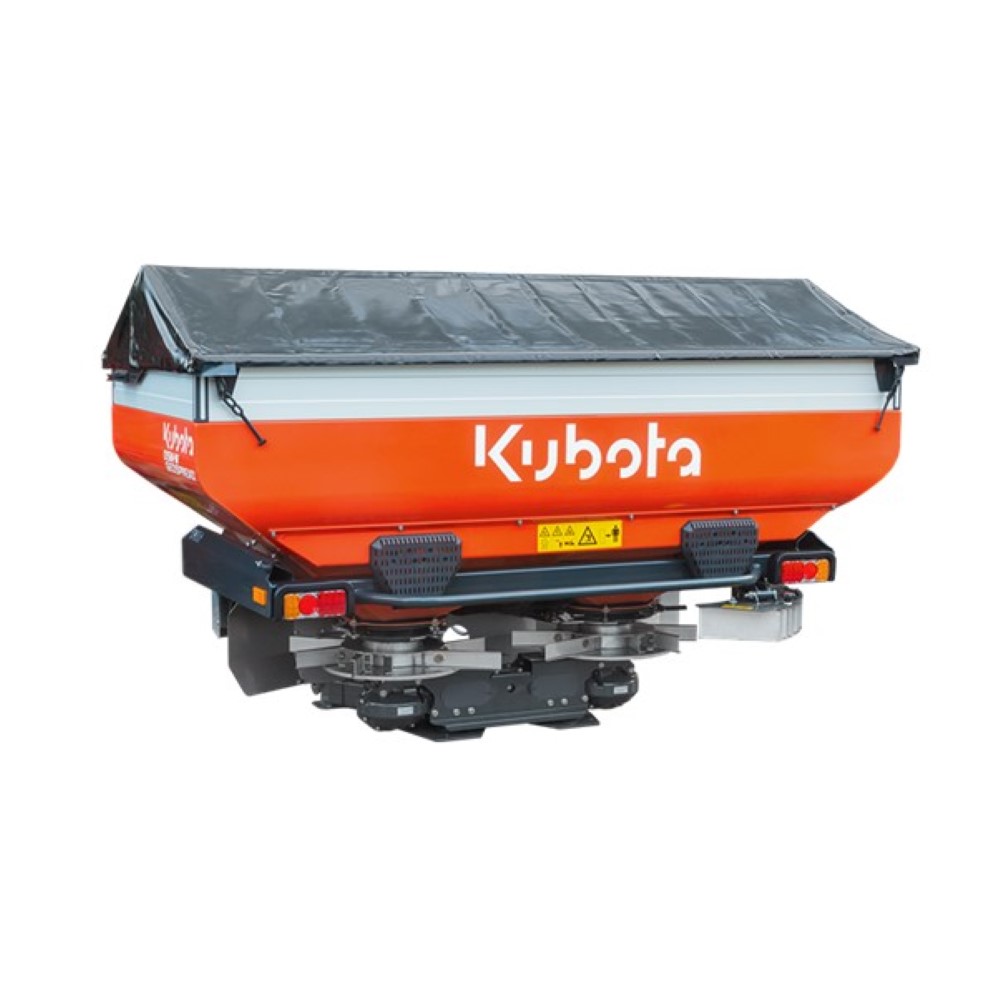

Kubota DSM-W GEOSPREAD Spreader – Overview
The Kubota DSM-W GEOSPREAD Spreader represents the next level of precision fertiliser application, combining on-board weighing technology with Kubota’s advanced GEOSPREAD section control system. Designed for professional farmers and contractors, this ISOBUS-compatible spreader ensures exceptional accuracy, cost savings, and maximum efficiency through automated rate control and variable working widths.
At the core of the DSM-W GEOSPREAD is Kubota’s RotaFlow spreading system, which guarantees consistent and uniform fertiliser distribution. Unlike conventional spreaders, the RotaFlow system accelerates fertiliser before it reaches the spreading vanes, ensuring a gentle and precise application pattern. This reduces granule breakage and maintains spreading accuracy, even at higher speeds.
The integrated weighing system with a unique reference sensor continuously monitors and adjusts the flow rate during operation. This eliminates the need for manual calibration and ensures the exact amount of fertiliser is applied, regardless of field conditions or fertiliser type. Farmers can trust that every kilogram of input is used efficiently, improving yields and reducing waste.
The GEOSPREAD system provides section control in 1-metre sections, automatically adjusting the spreading width and application rate based on GPS position. This significantly reduces overlaps and misses, saving fertiliser and protecting the environment. Combined with IsoMatch GEOCONTROL and compatible ISOBUS terminals such as IsoMatch Tellus PRO and Tellus GO, the DSM-W GEOSPREAD offers a fully integrated precision spreading solution.
The hopper capacity starts at 1,100 litres and can be increased to 2,000 litres using two easy-to-fit aluminium extensions. Working widths range from 10 to 24 metres, extendable to 27/28 metres with optional vane kits, providing excellent flexibility for different field sizes and applications.
The Kubota DSM-W GEOSPREAD Spreader is ideal for farmers looking to combine weighing technology, RotaFlow accuracy, and GPS-based section control in one intelligent package. It helps reduce input costs, improves crop performance, and supports sustainable nutrient management practices for modern farming.
Key Features
- RotaFlow spreading system for precise and uniform distribution
- On-board weighing system with reference sensor for automatic rate control
- GEOSPREAD technology for 1-metre section control and reduced overlap
- ISOBUS 11783 compatibility for seamless integration with tractor terminals
- IsoMatch GEOCONTROL support for variable rate applications and section control
- Hopper capacity from 1,100 L to 2,000 L with extensions
- Adjustable working width from 10–24 m, extendable to 27/28 m
Specifications
| DSM-W GEOSPREAD |
1100 |
1550 |
2000 |
2450 |
| Hopper capacity (l) |
1100 |
1550 |
2000 |
2450 |
| Filling height (cm) |
108 |
127 |
146 |
165 |
| Width (cm) |
220 |
220 |
220 |
220 |
| Filling width (cm) |
214 |
214 |
214 |
214 |
| Empty weight (kg) |
480 |
505 |
530 |
552 |
| Spreading width (m) |
10 – 24 (27/33)* |
10 – 24 (27/33)* |
10 – 24 (27/33)* |
10 – 24 (27/33)* |
| Output (kg/min) |
10 – 320 |
10 – 320 |
10 – 320 |
10 – 320 |
